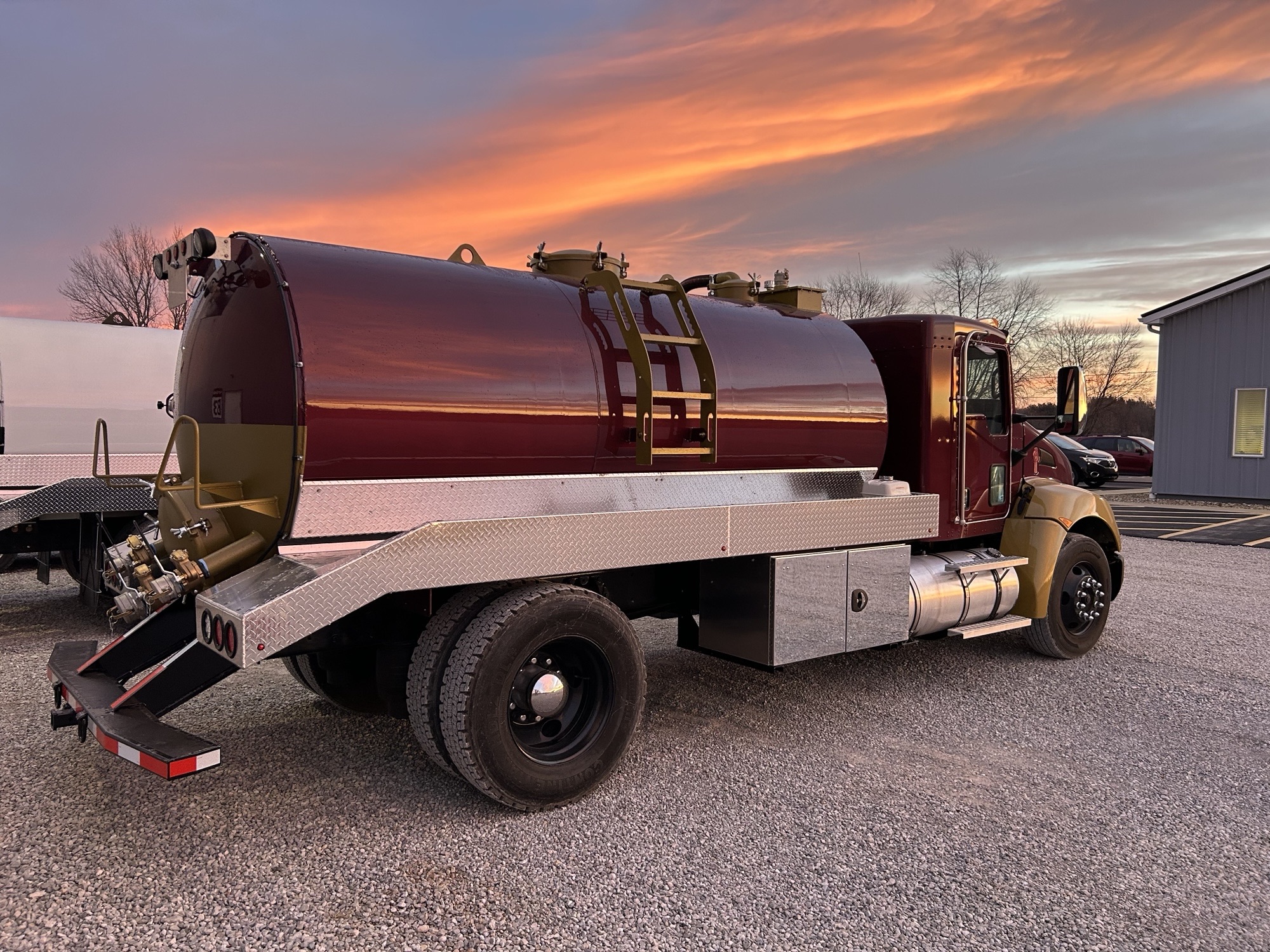

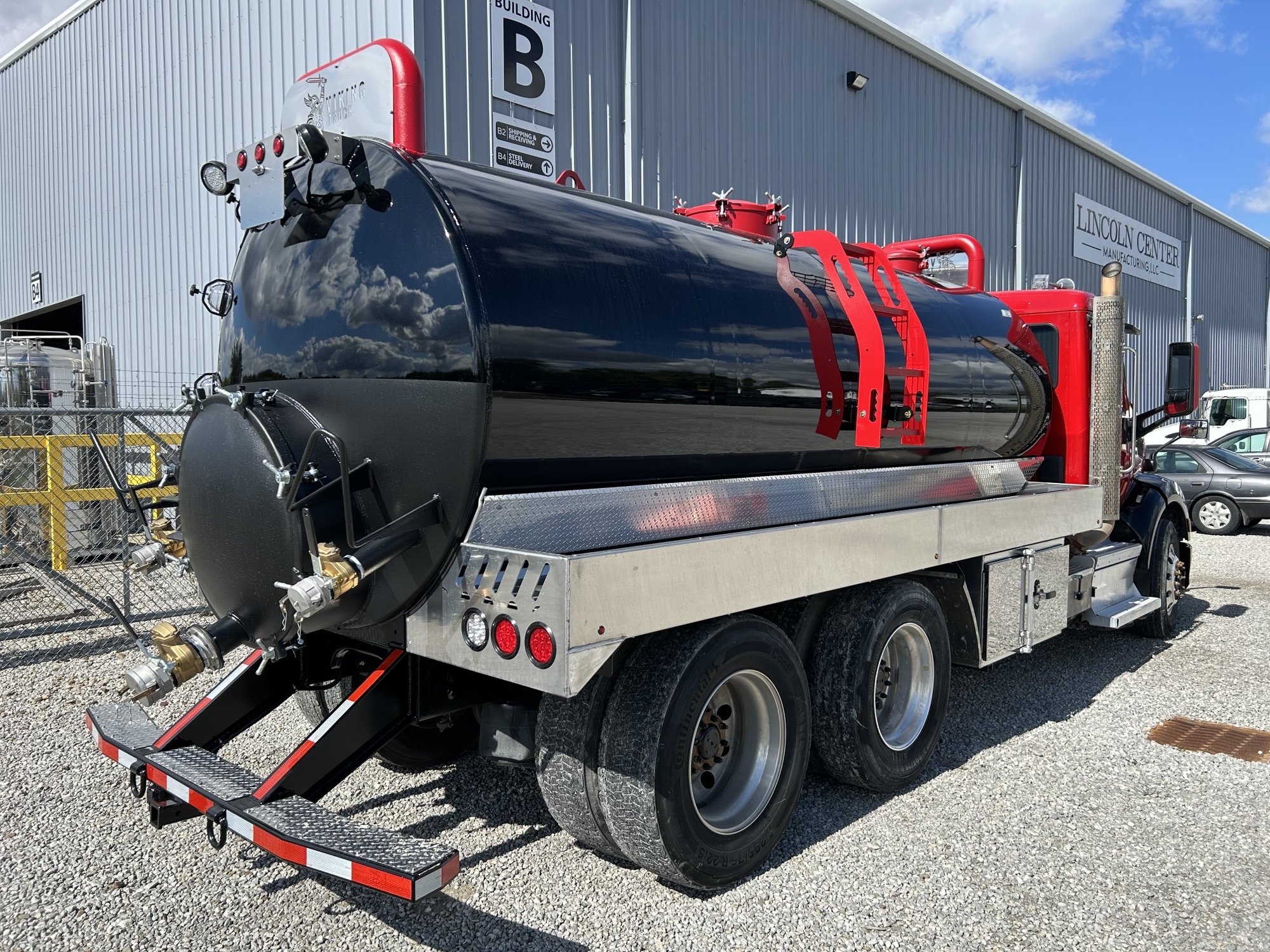

Vacuum Trucks

Built to Work, Priced to Win

Lincoln Center Manufacturing builds vacuum trucks that perform in the field and look professional doing it. Nearly every step happens under one roof; laser cut; press-brake formed; welded; sandblasted; painted; and assembled to spec. In-house control keeps timelines tight and costs efficient for customers; options include steel, stainless, and aluminum tanks; proven pump packages; and clean, durable finishes.

Engineered for Power, Performance & Reliability

Built for Real-World Demands

Modern industries rely on vacuum trucks as essential tools for safe and efficient material management. Traditional cleanup or excavation processes can be labor-intensive and unsafe. At At Lincoln Center Manufacturing, our vacuum trucks provide a clean, controlled, and cost-effective solution. We design and build high-performance vacuum trucks that deliver consistent results on the toughest jobs.

From industrial cleanup and hydro excavation to municipal maintenance and environmental remediation, our trucks are built to handle demanding conditions with unmatched efficiency and durability. Every unit we produce is more than just equipment, it’s a purpose-built tool engineered to keep your operations running safely, smoothly, and profitably.

Four Reasons Fleets Choose Lincoln Center

Lincoln Center is Quality

In-House Fabrication, Faster Turnarounds
Core processes live inside the facility; precision laser cutting; CNC press-brake forming; MIG/TIG welding; CNC milling; plate rolling. More work done internally means fewer delays; consistent quality; and better value.
Field-Ready Finishing
Surfaces are blasted with garnet; a high-performance, non-toxic media that gives coatings a clean start and long-lasting hold; then finished to match your brand.
Proven Pump & Blower Options
Specify trusted components from leading manufacturers; customer-selectable packages include Masport and Wallenstein vacuum pumps; NVE tri-lobe blowers; and the fittings to match.
Quality You Can See
Builds move from cut to coat with documented checks; tight fit and finish; tidy routing; and professional appearance that represents your company on every job.

Engineered to your capacity and application

Product Lineup

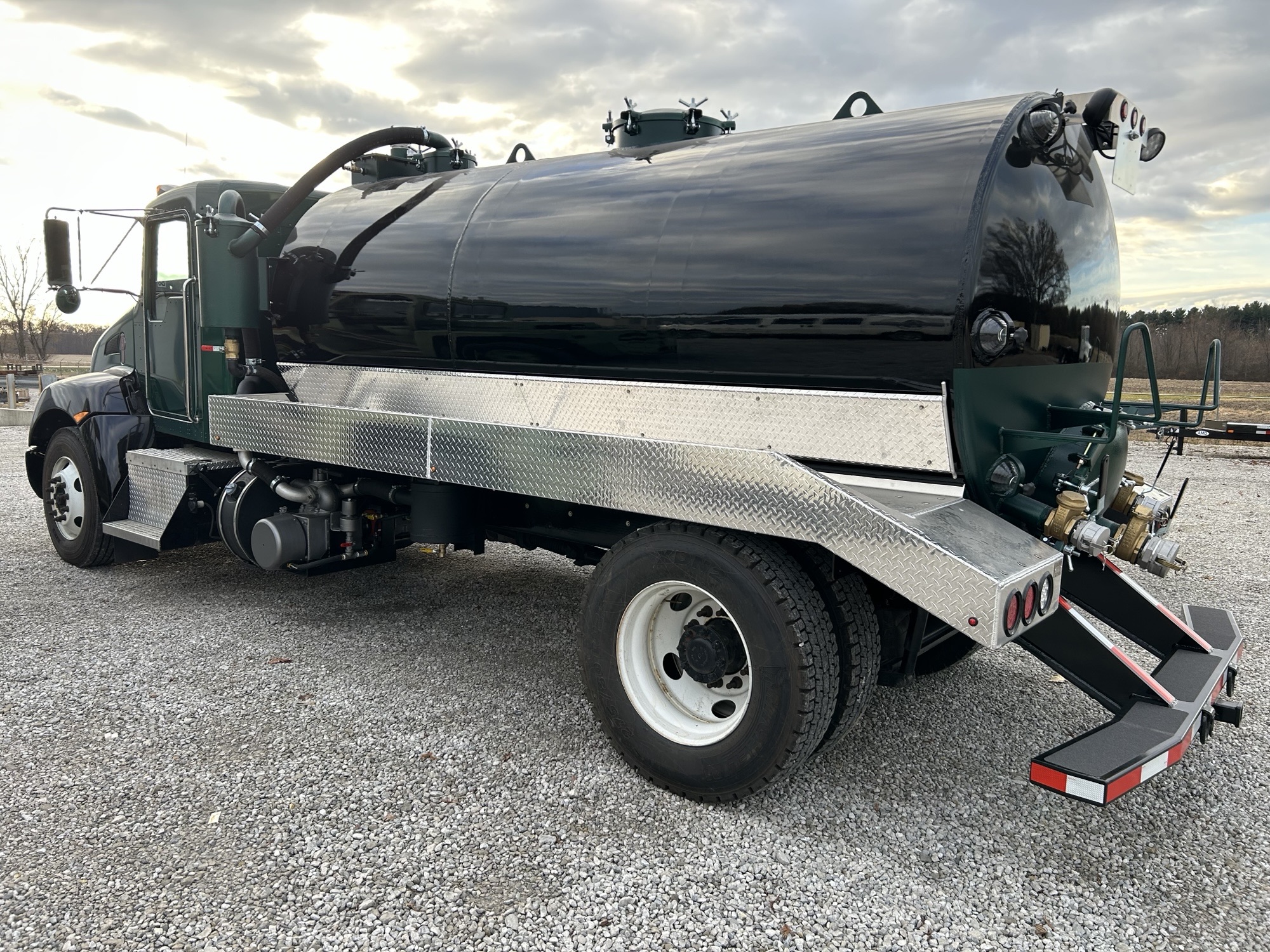

Carbon Steel 2500 Gallon

The unit features a split tank with baffles and two manways (top and rear), along with a primary, secondary, and rear bumper. It includes three rear sight glasses and one front sight tube for monitoring levels. Additional features include rear hose hooks, bolt-on aluminum side trays, a 3” inlet, and a 4” outlet equipped with a valve, camlock, and cap.

The system also has a vacuum relief, pressure relief, and a vacuum/pressure gauge. It comes with a DOT light kit, two work lights, two toolboxes, and either a Masport or Wallenstein pump package. The unit is finished with Delfleet Essential PPG white paint and a black chip guard.

Carbon Steel 2500 Gallon

The unit features a straight tank with baffles and two manways (top and rear), along with a primary, secondary, and rear bumper. It includes three rear sight glasses for level monitoring, rear hose hooks, and bolt-on aluminum side trays. The system is equipped with a 3” inlet and a 4” outlet with a valve, camlock, and cap, as well as a vacuum relief, pressure relief, and a vacuum/pressure gauge.

Additional features include a DOT light kit, two work lights, two toolboxes, and either a Masport or Wallenstein pump package. The unit is finished with Delfleet Essential PPG white paint and a black chip guard.

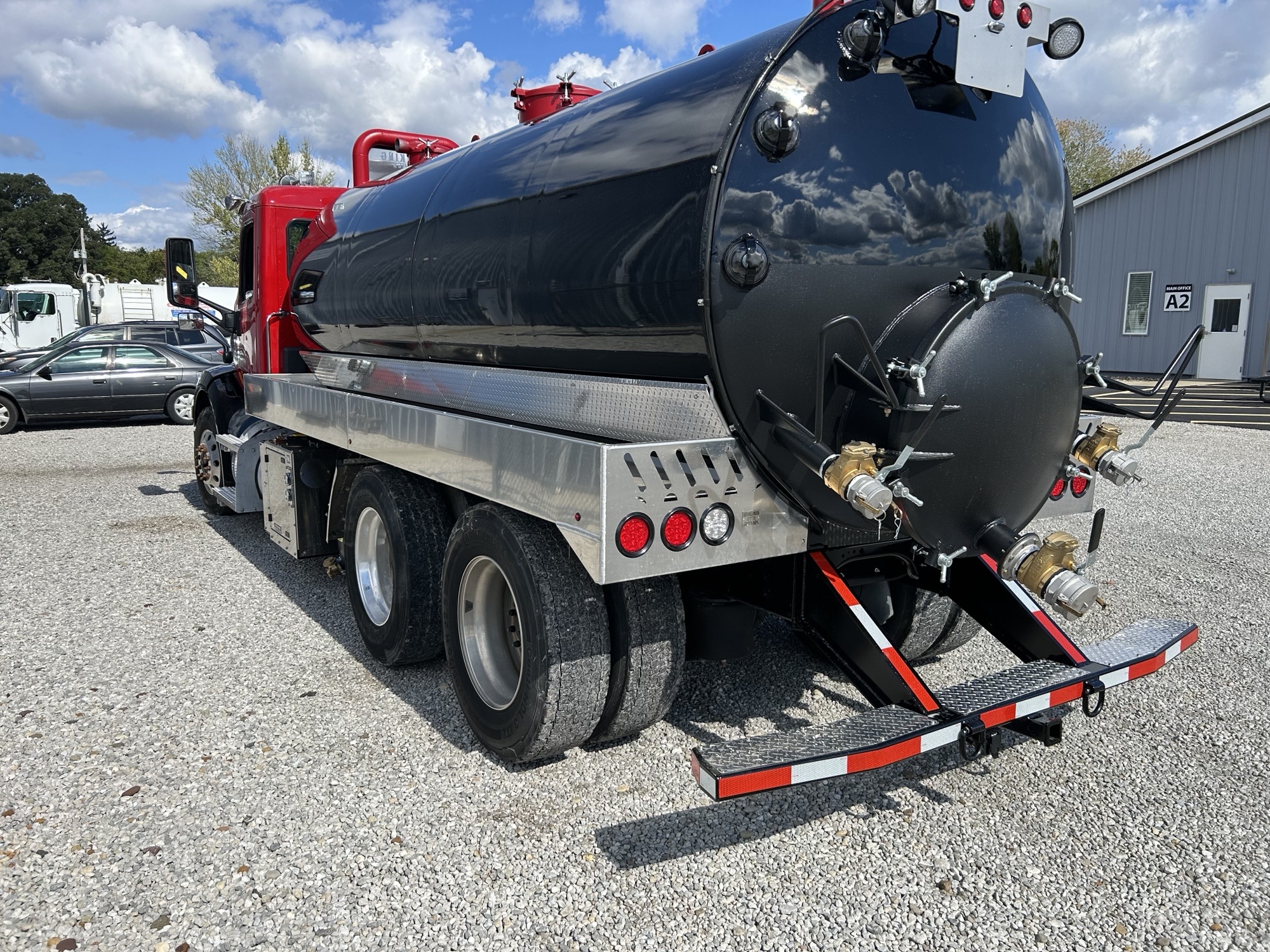

Carbon Steel 3600 Gallon

The unit features a split tank with baffles and two manways (top and rear), along with a primary, secondary, and rear bumper. It includes three rear sight glasses and one front sight tube for monitoring levels, as well as rear hose hooks and bolt-on aluminum side trays.

The system is equipped with a 4” inlet and a 6” outlet with a valve, camlock, and cap, along with a vacuum relief, pressure relief, and a vacuum/pressure gauge. Additional features include a DOT light kit, two work lights, two toolboxes, and either a Masport or Wallenstein pump package. The unit is finished with Delfleet Essential PPG white paint and a black chip guard

Carbon Steel 3600 Gallon

The unit features a straight tank with baffles and two manways (top and rear), along with a primary, secondary, and rear bumper. It includes three rear sight glasses and one front sight tube for monitoring levels, as well as rear hose hooks and bolt-on aluminum side trays. The system is equipped with a 4” inlet and a 6” outlet with a valve, camlock, and cap, along with a vacuum relief, pressure relief, and a vacuum/pressure gauge.

Carbon Steel 1600 Gallon

The unit features a porta-pot service split tank with a 1300-gallon waste capacity and a 300-gallon fresh water capacity, separated by a baffle. It includes two manways (top and rear), as well as primary and secondary compartments. The tank is equipped with three rear sight glasses and one front sight tube for monitoring levels. Additional features include rear hose hooks, bolt-on aluminum side trays, and a freshwater garden hose supply.

The system has a 3” inlet and a 4” outlet with a valve, camlock, and cap, along with a vacuum relief, pressure relief, and a vacuum/pressure gauge. It also includes a DOT light kit, two toolboxes, and either a Masport or Wallenstein pump package. The unit is finished with Delfleet Essential PPG white paint and a black chip guard, and features a heavy-duty aluminum flip-down porta-pot gate on the rear

Carbon Steel 900 Gallon Slide-in

The unit features a 470-gallon tank equipped with a 9 HP pump and an aluminum vertical muffler. It includes a 2” primary shut-off valve, a 2” secondary valve, a 3” outlet, and a 3” inlet for efficient operation.

The tank is finished with Delfleet Essential PPG white paint and a black chip guard for durability and protection.

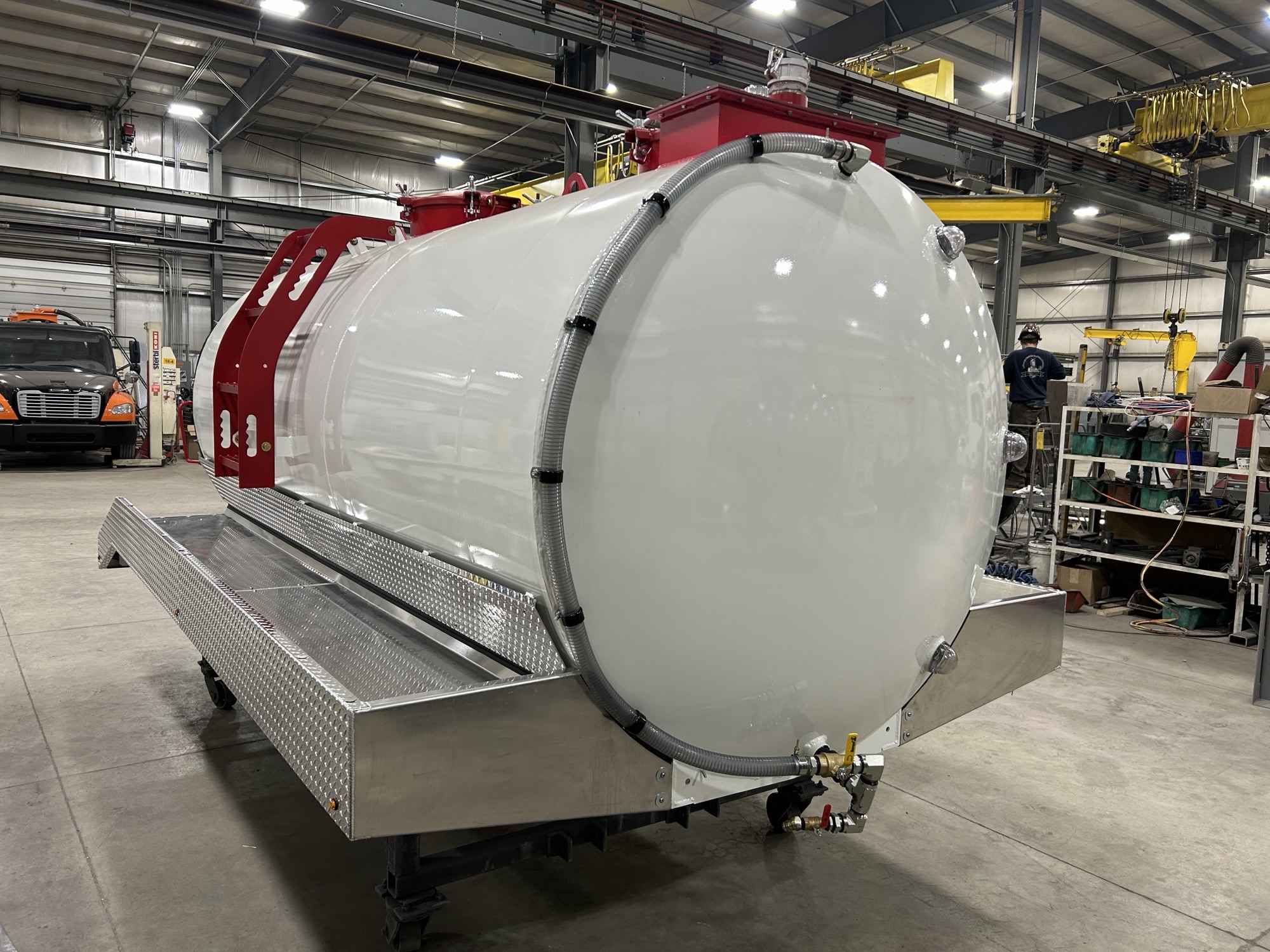

Custom Vacuum Tank Trucks

Custom vacuum tank trucks are engineered to meet your specific capacity and application requirements.

Construction options are available in carbon steel, stainless steel, or aluminum to suit a wide range of operational needs.

Service & Rebuild Support

We offer comprehensive pump repair and rebuild services.

In addition, we offer full tank teardown and remount services to keep your equipment running efficiently and reliably.

lock in your build slot

Make It Yours

Materials & Capacity; steel; stainless; aluminum; size to spec.
Pump Packages; Masport; Wallenstein; NVE; with accessories, valves, and hookups specified to your workflow.
Finish & Color; branded paint schemes; durable coatings; clean labeling.
Layout & Storage; hose hooks; trays; guards; work-light and safety options.

Say hello! We love it!

Ready to Spec a Truck?

Tell the team what you need; get a fast quote; and lock in a build slot.
